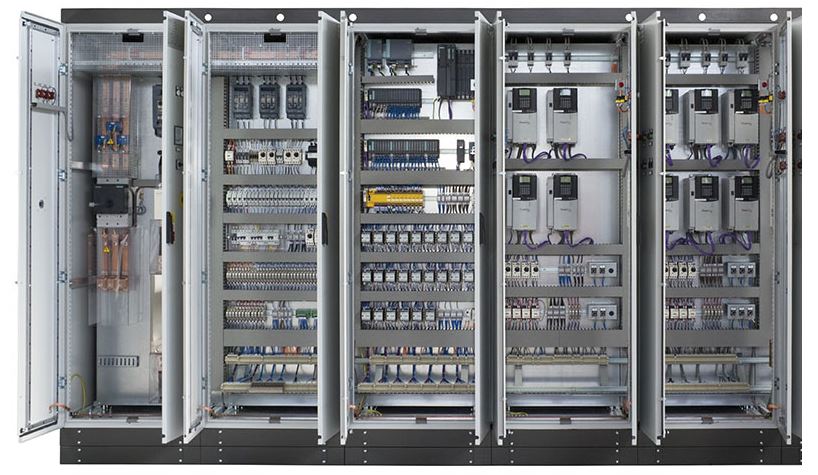

Characteristics & Features :

- High flexibility for economical solutions

- Deep switchgear compartment for universal installation

- Single-front and back-to-back installation

- Cable lead-in from above or below

- Cable connection from the front or rear

- Optimum Adaptation to Space Conditions

- Cables and busbars can be connected optionally from above or below

- Busbar position at top

- Busbar system for rated currents up to 7400 A

- Separation of the busbar compartment from the device compartment

- Wall-mounted or freestanding

- Frame and enclosure are manufactured from sheet steel in the Following thicknesses:

1.5 mm for wall- mounted type

2mm for freestanding types

- Degree of protection: IP42, IP54 & IP55
